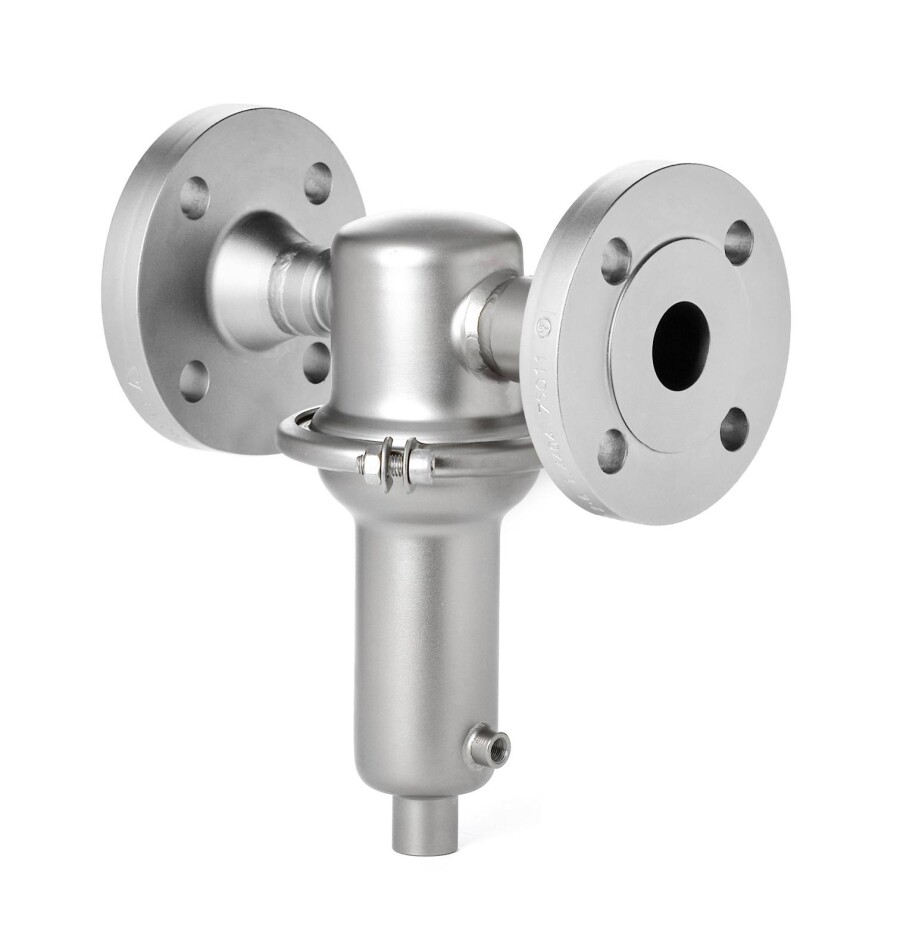

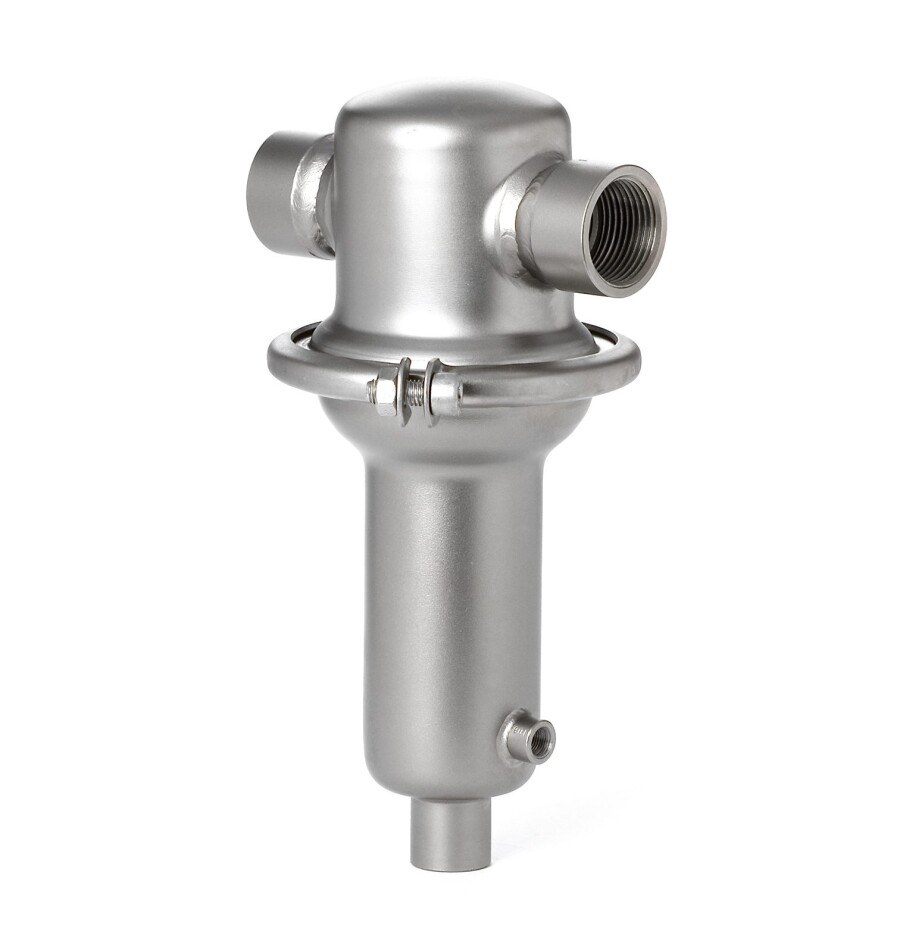

Universal valve
UV5.1
Application
- Liquids, gases up to 130 °C
- Steam up to 220 °C
Standard
- Connection: thread G ½-2 / flange DN 15-50
- Setting ranges P1:
0,8 - 2,5 / 2 - 5 / 4 - 8 / 6 - 12 bar - Kvs value: 3,5 - 22 m3/h
- Completely made of stainless steel 316L
- Closed bonnet
- Non-rising adjusting screw
- Quick-release body clamp ring
Options:
- Setting ranges P1:
0,02-0,12 / 0,1-0,5 / 0,3-1,1 bar - Elastomers: FKM, PTFE, FEPM, NBR
- Elastomers as per FDA and USP Class VI
- Manometer connection
- Mid section for steam up to 220 °C
- Electro-pneumatic control
- Leakage line connection
and sealed adjusting screw - Aseptic or ANSI flanges, NPT, welding ends
Valve for large flow rates
UV4.7
Application
- Liquids, gases up to 130 °C
Standard
- Connection: flange DN 50-100
- Setting ranges P1: 0,8 - 2,5 / 2 - 5 / 4 - 8 bar
- Kvs value: 32 - 100 m3/h
- Completely made of stainless steel 316L
- Without bonnet
- Quick-release body clamp ring
- Sense line connection
Options:
- Setting ranges:
0,02-0,15 / 0,02-0,25 / 0,1-0,6 / 0,2-1,2 bar - Elastomers: FKM, PTFE
- Elastomers as per FDA and USP Class VI
- Manometer connection
- Closed bonnet
- Leakage line connection
and sealed adjusting screw - Aseptic or ANSI flanges, welding ends
Valve for large flow rates
UV1.8
Application
- Liquids, gases up to 200 °C
Standard
- Anschluss: Flansch DN 25 - 100
- Druckbereiche P1: 2 - 5 / 4 - 10 / 18 - 16 / 14 - 20 bar
- Kvs Werte: 6 - 50 m3/h
- Completely made of stainless steel 316L
- Federhaube
Options:
- Polierte Ausführung Ra ≤ 0,25 / 0,4 / 0,8 μm
- Elastomere aus FKM, CR, NBR
- Elastomers as per FDA and USP Class VI
- Leakage line connection
- Aseptic or ANSI flanges, welding ends
