Steam trap

KA 2

Dimensions

DN 15 - 25

Nominal pressure

PN 16

Temperature

190 ┬░C

Connection

thread, flange

Application

  • Steam and gases

Standard

  • Connection: thread G ┬Ż-1 / flange DN 25
  • Operating pressure: 0-2 / 0-6 / 0-12 bar
  • Flow rate: up to 1570 l/h
  • Body material: SS 316L
  • Trim materials: SS 316L
  • Quick-release body clamp ring
  • Excellent surface quality
  • Soft seal EPDM
  • Manual bleed valve

Options:

  • Connection: Aseptic or ANSI flanges, NPT, welding ends
  • Various seal materials suitable for your medium
  • Expansion pipe connection
  • No manual bleed valve
  • Elastomers as per FDA and USP Class VI
  • TA-Luft design
  • Special design on request

Steam trap ATEX version

KA 2 ATEX

Dimensions

DN 15 - 25

Nominal pressure

PN 16

Temperature

190 ┬░C

Connection

thread, flange

Application

  • Steam and gases

Standard

  • Compliance to ATEX directive 2014/34/EU
    and DIN EN ISO 80079-36
  • Connection: thread G ┬Ż-1 / flange DN 25
  • Operating pressure: 0-2 / 0-6 / 0-12 bar
  • Flow rate: up to 1570 l/h
  • Body material: SS 316L
  • Trim materials: SS 316L
  • Quick-release body clamp ring
  • Excellent surface quality
  • Soft seal FKM
  • Expansion pipe connection
  • Potential equalization among the valve components

Options:

  • Connection: Aseptic or ANSI flanges, NPT, welding ends
  • Various seal materials suitable for your medium
  • Elastomers as per FDA and USP Class VI
  • Special design on request

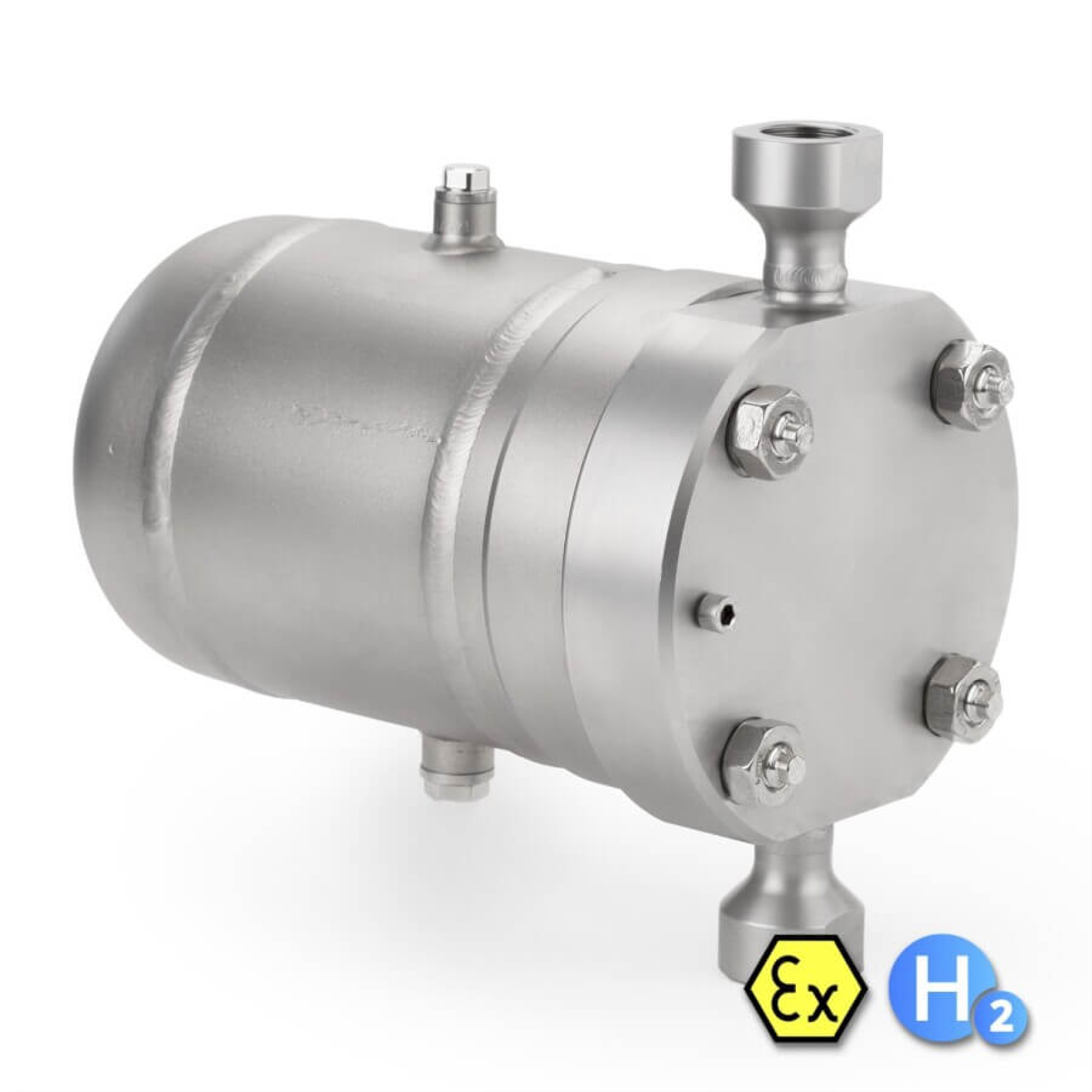

Steam trap ATEX H2

KA 2 ATEX H2

Dimensions

DN 15 - 25

Nominal pressure

PN 16

Temperature

190 ┬░C

Connection

thread, flange

Application

  • Steam and gases

Standard

  • Compliance to ATEX directive 2014/34/EU
    and DIN EN ISO 80079-36
  • Connection: thread G ┬Ż-1 / flange DN 25
  • Operating pressure: 0-2 / 0-6 / 0-12 bar
  • Flow rate: up to 1570 l/h
  • Body material: SS 316L
  • Trim materials: SS 316L
  • Excellent surface quality
  • Seat seal FKM
  • Expansion pipe connection
  • Electrically conductive components

Options:

  • ┬áConnection: Aseptic or ANSI flanges, NPT, welding ends
  • Various seal materials suitable for your medium
  • Elastomers as per FDA and USP Class VI
  • Special design on request
